Continuous and scalable fabrication of flexible metamaterial films via roll-to-roll nanoimprint process for broadband plasmonic infrared filters
- Journal
- Applied Physics Letters
- Vol. (No.), pp.
- 101 (22), 223102 (Nov 2012)
- Year
- 2014-

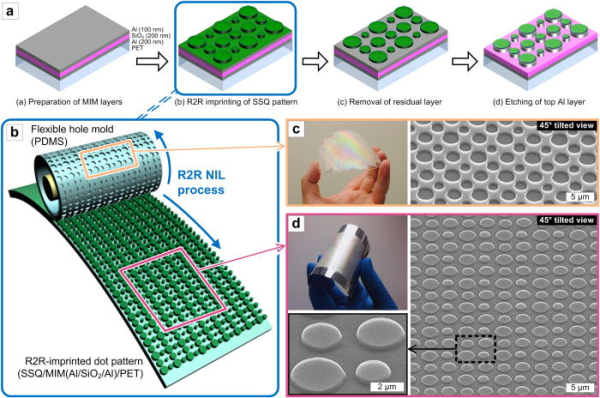

We demonstrate the continuous fabrication of large-area flexible metamaterial films via roll-to-roll (R2R) nanoimprint lithography (NIL) technique that can be conducted in an ambient environment at high speed. The plasmonic metal-insulator-metal structure is successfully fabricated by R2R NIL to continuously pattern the sub-wavelength scale metal disk array on flexible substrates. The patterned metal disks having varying diameters and sub-micron spacing with few defects lead to the desired broadband IR filtering performance at the designed dual-band, which correlates well with simulation analysis. Our method realizes a simple and high-throughput fabrication of plasmonic metamaterials for scalable and flexible optoelectronic and photonic applications.
